A Chance To Build The Gun And Grade You Want.
**It is obvious to the reader and purchaser that the building, assembly, fit, finish and function of these parts, barrels, and/or guns is only to be undertaken by highly skilled and qualified Gunsmiths that possess an FFL and specialize in side by side double shotguns. Failure to comply with this, or an attempt to build or alter any firearm by an unqualified individual can result in serious bodily injury, and death.**
This is the chance to own and build** one of the very last original A.H. Fox guns with all original receivers, barrels, wood, and components to be made. Please call or email for questions or ordering.
One Complete Set of Parts With Each Kit Ordered

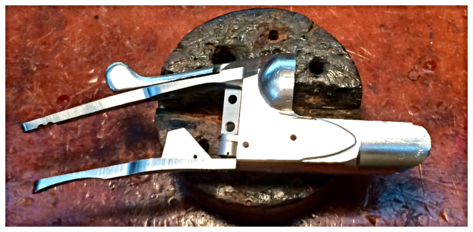

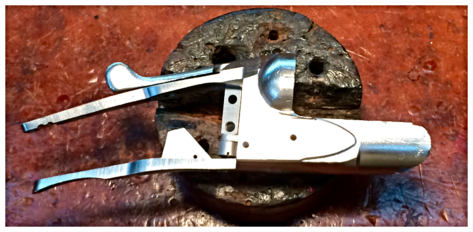

These receivers were manufactured between 1900 and 1940 - there are no more of them. Each receiver has all channels cut, all holes drilled and tapped, hinge pins w/extractor cams fit, trigger plates fit, top levers w/ guides and nuts fit - They are ready to begin installing and functioning the internals. There are no original markings. There are two styles of 12 gauge receivers available, early/conventional top tang, and the later draw bolt style w/rear tang spacer. Will ship to FFL only. All parts except the buttplates are original manufacture. Forends and buttstocks are all American Black Walnut and are from the first half of the 20th century.
3. Email me with your order, questions, and phone #, jason@ahfoxparts.com
28” = $340.00
* Limited Quantity
16 Gauge Sterlingworth Barrel Length:
28” = $299.00 (SP Style) 30” = $499.00 * 32” = $1,750.00 * (SP Style)
16 Gauge Graded Barrel Lengths:
26” = $275.00 28” = $299.00 29.5” = $399.00 *
12 Gauge Sterlingworth Barrel Lengths:
26” = $325.00 29.5” = $399.00
12 Gauge Graded Barrel Lengths:
2. Choose and ADD your Barrel Length and Style:
12 Gauge Ejector Kit = $1999.00 + barrels 12 Gauge Extractor Kit = $1499.00 + barrels 16 Gauge Ejector Kit * = $2999.00 + barrels
(*20 Gauge Ejector Kit WITH 28" barrels $4900)

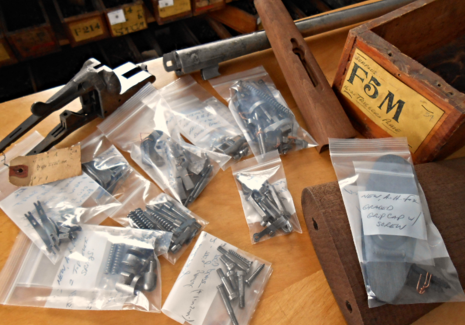

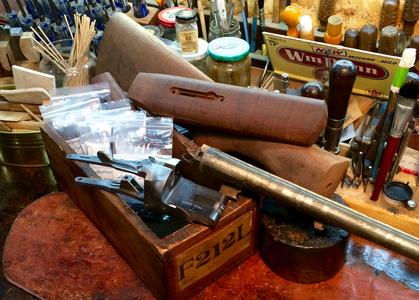

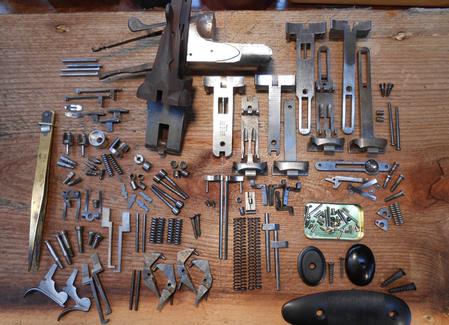

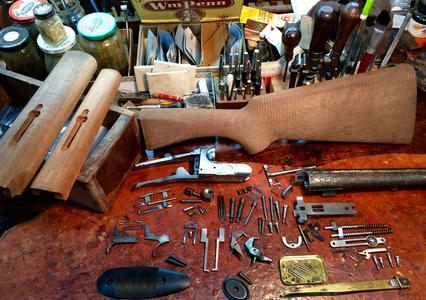

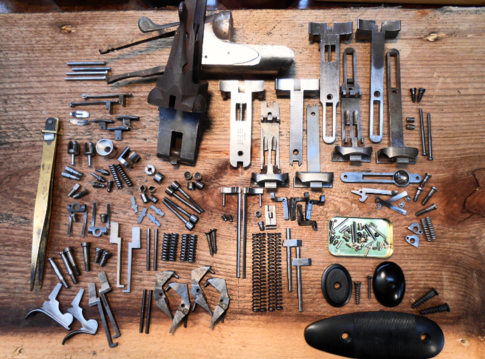

Each Kit comes with everything your gunsmith needs to build a complete gun: receiver, your choice of barrels, Semi-inlet Field grade walnut forend and buttstock, buttplate, gripcap, barrel beads, and one complete set of all small parts, mechanics, internals, etc. (less trigger guard)
1. Choose your Gauge:
Buying your A.H. FOX Shotgun Kit is three simple steps:
New, Original Manufacture A.H. Fox Shotgun Parts Kits available.
Limited numbers of 12, 16, and 20 gauges; Ejector or Extractor, Graded or Sterlingworth styles.
- Original A.H. Fox Shotgun Parts Kits -
